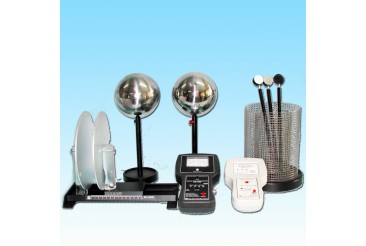

The Basic Electrostatics System includes all the
component necessary for a quantitative investigation into the basics of
electrostatics. With this integrated set of equipment, students can study:

Production of charges, equal
and opposite., Charge by induction, Principle of the Faraday Ice Pail, Charge
transfer, Charge distribution in electric fields., Capacitors and the Q=CV
relationship, Moving charges and current.

Electrometer(SG-9600)

Range(0~±100V), x5,x10, x50, x100

PC interface

Faraday Ice Pail(SG-9600-1)

Charge producer and proof plane (SG-9600-2)

Conductive spheres, 13Cm (SG-9600-3)

Capacitor(SG-6008) : D 200mm, possibility distance 120mm

Electrostatics Voltage Source (SG-9600-4)
:1k, 2k, 3kV.​

Cable
3EA (BNC-alligator clip, banana-banana , banana-alligator clip)

DC
Power supply(1) : 30V, 3A, SG-P303D
